How to Build a Shed Dormer That Adds Real Living Space
To build a shed dormer, start with an engineered plan that confirms the existing roof and floor can carry the added loads. Then, obtain permits, brace and open the roof, frame reinforced walls and rafters, install roof sheathing, and finish every roof-to-wall connection with proper flashing and weatherproofing.

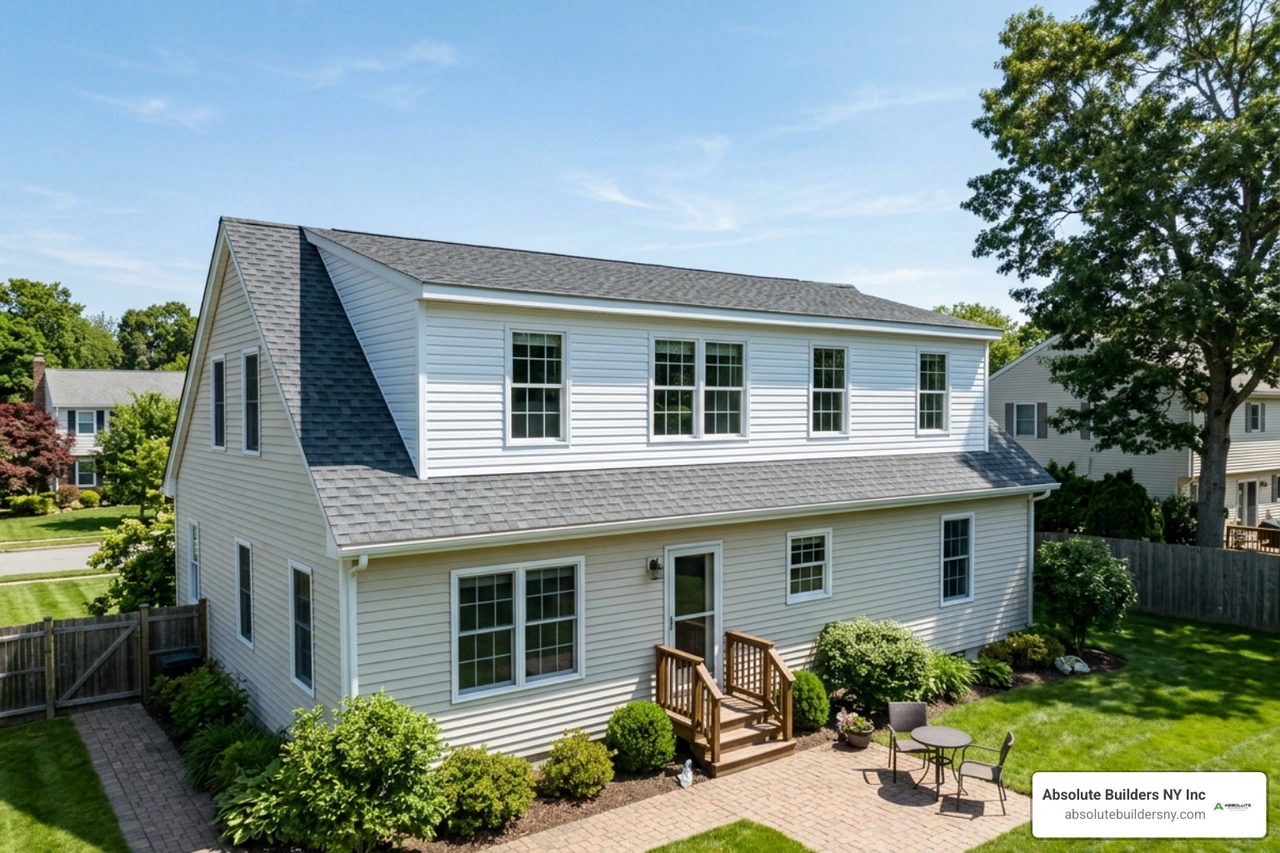

A shed dormer is a long dormer with one sloped roof plane. Unlike a small gable dormer, it can span much of the rear roof and create enough headroom for bedrooms, bathrooms, or a home office. It is especially useful on Cape Cod and other one-and-a-half-story homes where an attic has floor area but little space to stand.
The details matter. A dormer roof generally needs at least a 4-in-12 pitch for conventional shingles, while the main roof is often 8-in-12 or steeper. Good proportions, properly sized headers, and a clear drainage path keep the addition looking intentional and protect it from leaks.
I am Jacolyn Gleason, a public relations professional with experience translating complex home-improvement topics into clear, useful guidance for homeowners. While planning to build a shed dormer requires licensed design and structural expertise, this guide will help you understand the framing, weatherproofing, and decision points before construction begins.
Build a shed dormer terms to know:
Architectural Principles: Design, Pitch, and Structural Load
When we look at expanding an upper story, understanding what are dormers on a house is the first step in unlocking hidden living space. A shed dormer functions by popping out a single, gently sloping roof plane from the existing roof slope. This single design move converts sloped attic rafters into full-height vertical walls.
Achieving adequate headroom is the main architectural driver. Building codes generally require a clear ceiling height of at least 7 feet across the required minimum floor area, with a minimum height of 6'8" over bathroom fixtures. To make this work seamlessly, the host roof of a 1½-story home should ideally have an existing pitch of 8-in-12 or steeper.
The dormer’s new roof must maintain a minimum slope of 4-in-12. Anything shallower risks drainage complications and falls outside standard asphalt shingle warranties, which often demand specialized low-slope membranes. Maintaining a 4-in-12 pitch also prevents an awkward, boxy look from the yard.
Architectural hierarchy is critical. We always place the dormer's spring line (where the dormer roof ties into the host roof) just below the main ridge board. Keeping the dormer subordinate to the primary roof structure preserves traditional curb appeal.
Underfoot, structural engineering must account for a minimum 40 pounds per square foot (psf) live load for habitable sleeping and living spaces, alongside standard dead loads.

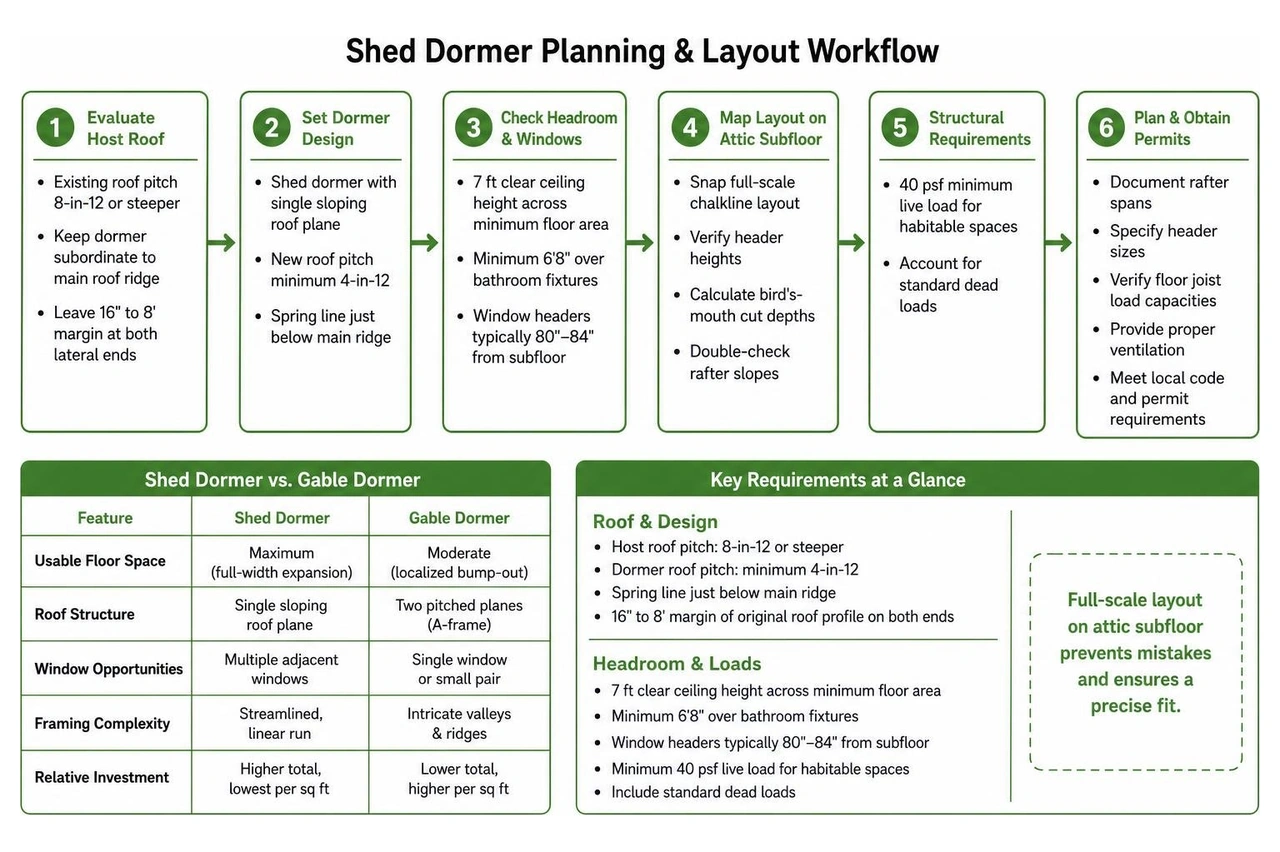

Sizing and Pitch Calculations to Build a Shed Dormer
Before making a single cut into the roof framing, builders map the entire structure on the attic subfloor. Snapping a full-scale chalkline layout directly onto the deck acts as a life-sized blueprint. This step allows us to verify window header heights (typically 80 to 84 inches from the subfloor), calculate bird's-mouth cut depths, and double-check rafter slopes without guesswork.
When adjusting rafter angles to match the roofline, resources like the guide to frame a classic shed dormer emphasize that precision in subfloor math prevents ridge height mismatches later. Leaving a 16-inch to 8-foot margin of the original roof profile on both lateral ends ensures the dormer nestles naturally within the eaves rather than overwhelming the house.
Codes, Engineering, and Permits
Modifying structural roof framing triggers strict local municipal reviews across Long Island, NY, from Huntington to Massapequa and Westhampton. Plans must clearly document rafter spans, header sizing, floor joist load-bearing capacities, and proper ventilation channels per residential building codes.
Questions regarding jurisdiction often arise during planning, such as do I need a permit for my shed? - Westhampton Beach, NY. When adding a major structural dormer to a primary residence in Nassau County or Suffolk County, comprehensive engineered drawings and building permits are mandatory.

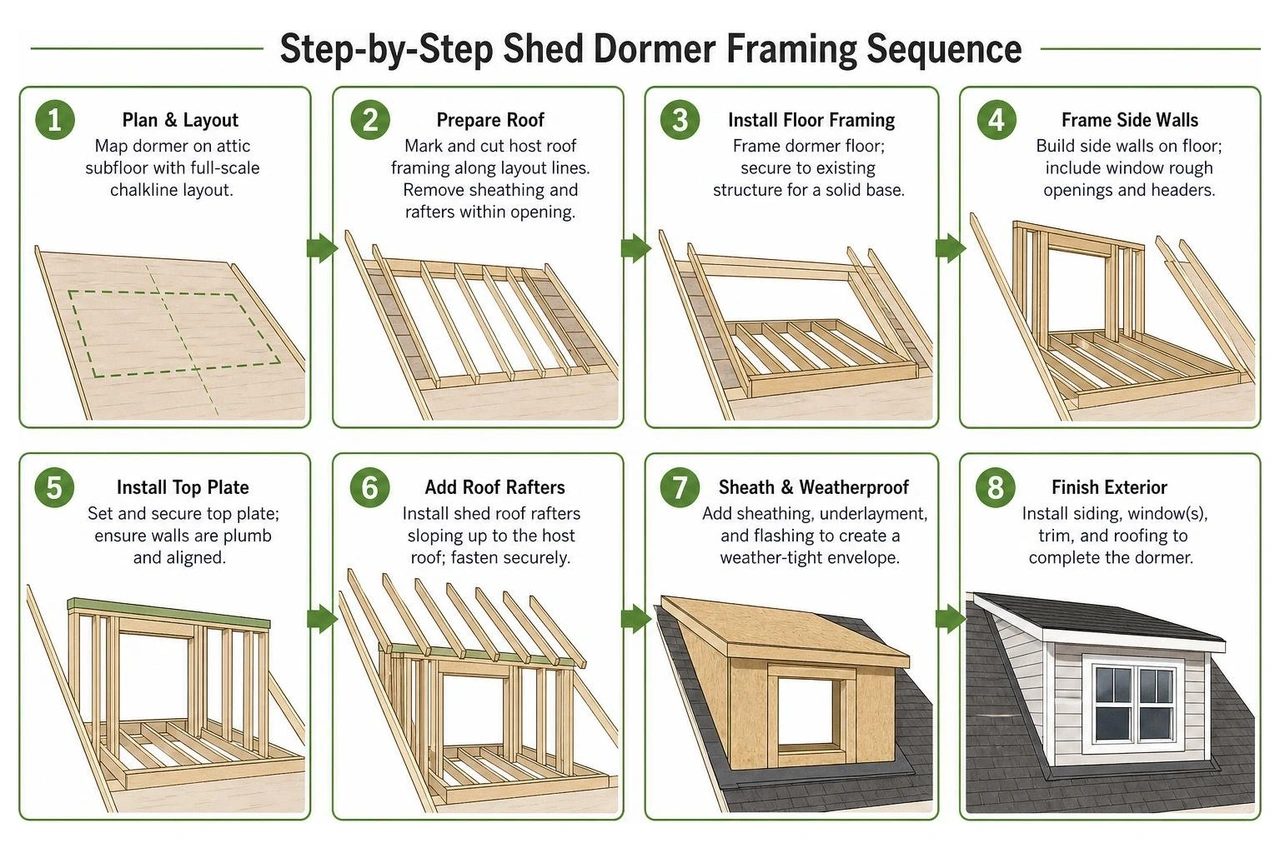

Step-by-Step Guide to Build a Shed Dormer
Transforming an attic into finished living space requires a clean, methodical progression from structural demolition to the final weather-tight envelope.
Tools and Materials Needed to Build a Shed Dormer
Framing a durable dormer demands professional-grade materials and safety equipment:
- Lumber: 2x6 SPF framing lumber for rafters, 2x4s for wall studs, and pressure-treated lumber for base plates contacting exterior surfaces.
- Structural Headers: 2x10 or engineered LVL beams for window spans and roof tie-ins.
- Sheathing & Fasteners: 5/8-inch CDX plywood or OSB, framing nails, and structural timber screws.
- Tools: Reciprocating saw, circular saw, pneumatic framing nailer, 4-foot spirit level, laser level, and chalk lines.
- Safety Gear: OSHA-compliant full-body harness fall-arrest system, sturdy staging, and heavy-duty tarps for weatherproofing open roof decks.

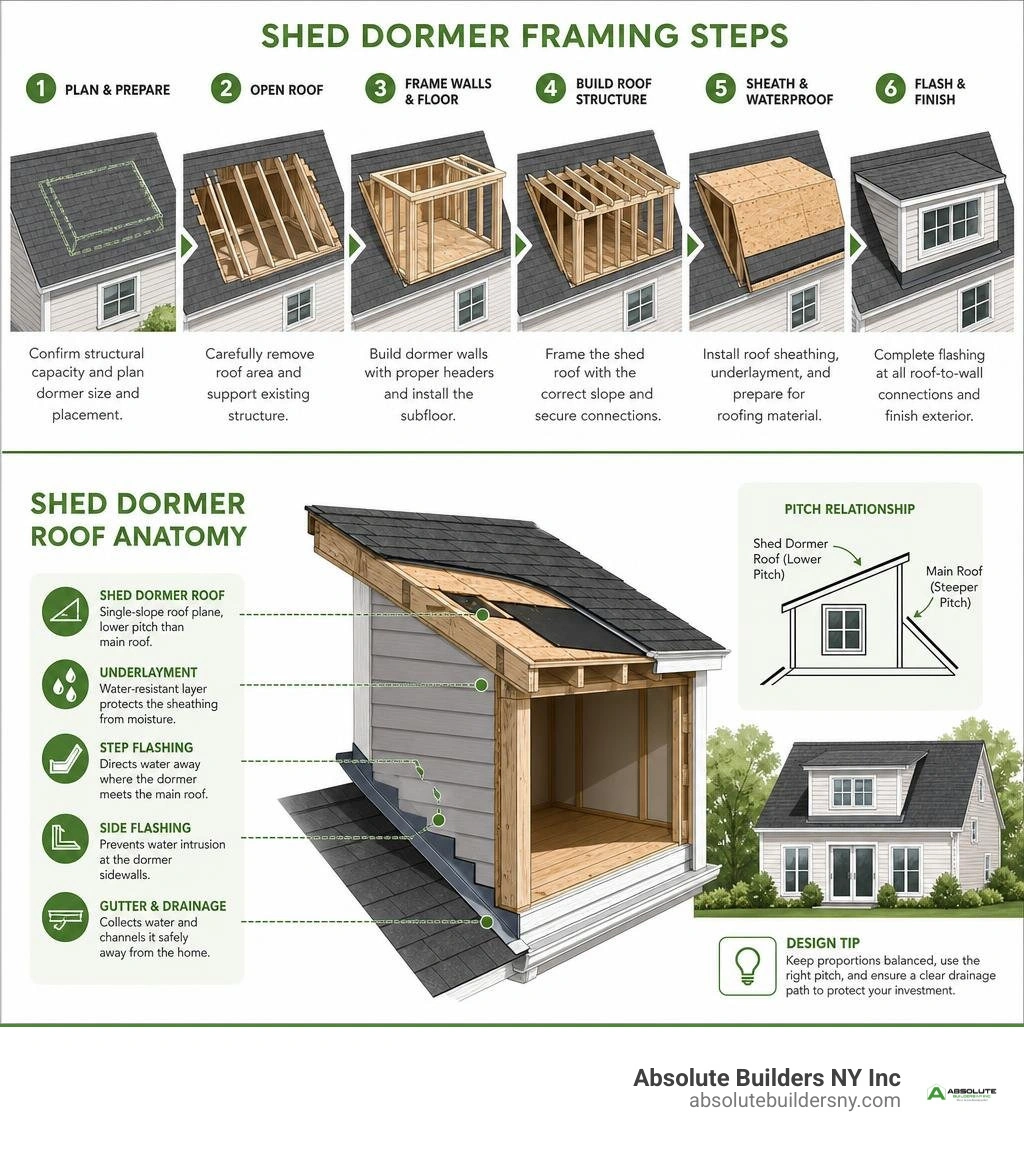

Framing the Front Wall and Cheek Walls
- Roof Opening: Build temporary interior load-bearing support walls beneath the existing rafters. Cut back the roof deck and rafters using a reciprocating saw to create the structural rough opening.
- Front Wall Assembly: Frame the front wall flat on the subfloor deck using double top plates, 16-inch on-center studs, and properly supported window openings with jack and king studs.
- Erecting and Bracing: Raise the front wall into position, check for plumb with a level, and secure it with diagonal braces. Run a taut stringline across the top plate to ensure straight alignment.
- Cheek Walls: Frame the triangular side (cheek) walls tying the front wall back into the host roof slope. Similar to framing a gable dormer, cheek studs must be custom-cut to match the specific pitch of the primary roof.
Rafter Installation and Roof Sheathing
Dormer rafters are cut with precision bird's-mouth notches where they bear on the front wall top plate. At the upper end, rafters tie securely into a structural header or the primary ridge board.
We space 2x6 or 2x8 rafters 16 inches on center to support regional snow loads. Fasten 5/8-inch CDX plywood sheathing across the roof frame, staggering the joints, and immediately secure metal drip edges along all eaves and rakes.
Weatherproofing: Windows, Roofing, Flashing, and Siding
An open roof framing project is only as strong as its moisture barrier. Comprehensive weatherproofing shields against wind-driven rain and snowmelt.
Window Integration and Natural Lighting
A standard shed dormer easily accommodates multiple adjacent windows, flooding the new space with natural daylight. Proper dormer window installation begins by forming a seamless sill pan flashing tilted slightly outward.
Ensure at least 4 to 6 inches of clearance between the bottom of the exterior window sill and the finished roof deck. This spacing guarantees adequate room for step flashing and protects trim from standing snow and water splash-back.
Exterior Cladding and Roofing Tie-Ins
- Underlayment: Apply an ice-and-water protection membrane across the entire shed dormer roof deck and up the cheek wall transitions.

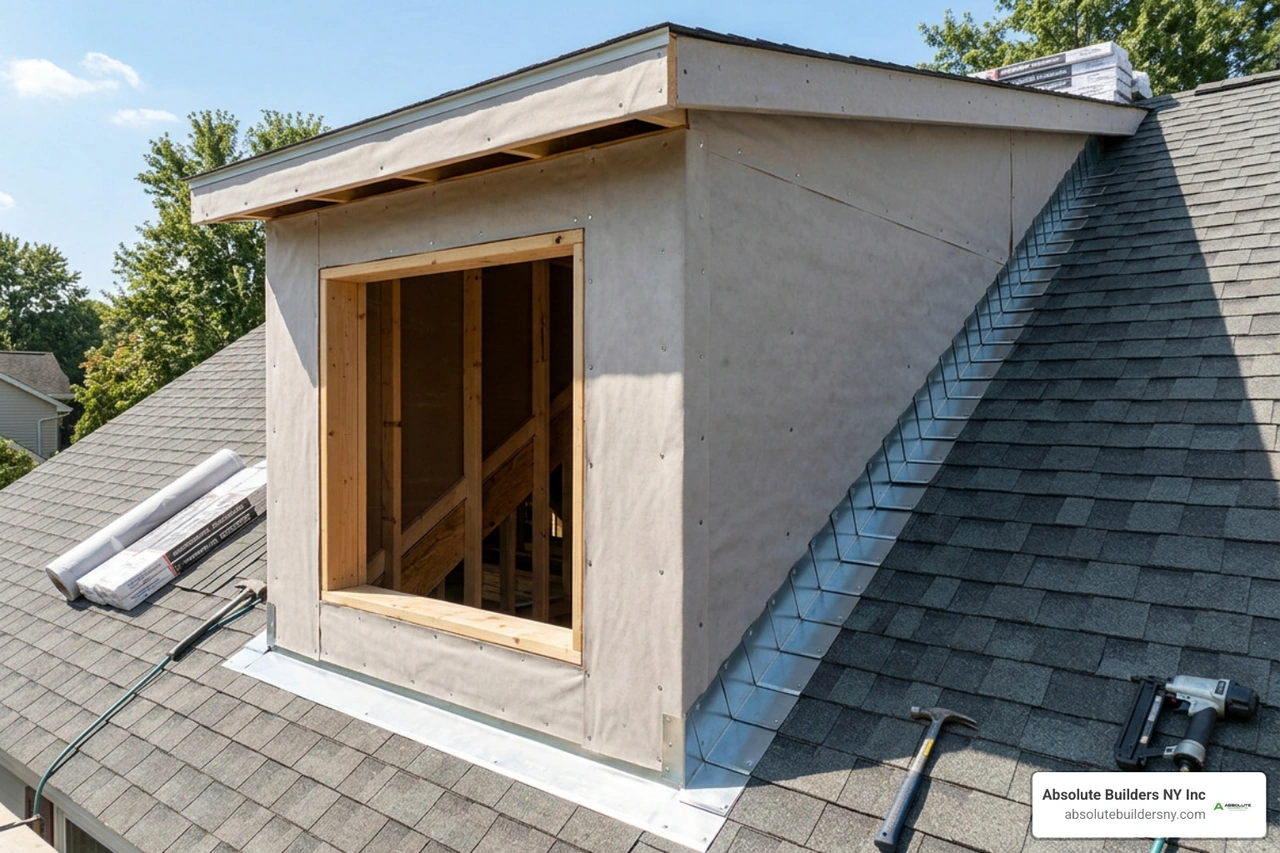

- Step Flashing: Weave individual pieces of corrosion-resistant step flashing between every course of asphalt shingles where the cheek walls intersect the main roof.
- Counter-Flashing & Housewrap: Wrap walls in a continuous weather-resistant barrier, overlapping all flashing fins.
- Siding Installation: Install siding—such as cedar shakes, vinyl, or fiber cement—leaving a clean 1- to 2-inch gap above the roof shingles to prevent moisture wicking and rot.
Cost Breakdown and Investment ROI
Adding a shed dormer represents a substantial, value-generating investment in your home. Based on project scope and finishes across Long Island, NY:
- Attic Remodel (Existing Roofline): Starts around $175,000.
- Partial Shed Dormer Addition: Typically starts around $200,000.
- Full-Width Shed Dormer Addition: Averages approximately $275,000.
For detailed local pricing factors, see our breakdown on dormer addition cost Long Island. A full-width shed dormer can double the usable second-floor square footage, easily transforming a 2-bedroom, 1-bath layout into a spacious 3- or 4-bedroom, 2-bath home.
Homeowners often finance these additions using future-value renovation loans, borrowing against the projected equity created by the expanded living area. To explore the broader planning process, read our dormer addition complete guide.
Frequently Asked Questions About Building a Shed Dormer
What is the minimum roof pitch required to build a shed dormer?
A shed dormer roof should maintain a minimum slope of 4-in-12. This angle ensures rapid water runoff, prevents snow accumulation, satisfies standard asphalt shingle warranty requirements, and preserves balanced exterior proportions.
How long does a typical shed dormer project take to complete?
A complete shed dormer project generally takes between 6 to 8 months from the initial architectural consultation and municipal permitting through to framing, rough trades, and final interior trim.
How much usable space does a full shed dormer add to an attic?
A full-width shed dormer can add 400 to 500+ square feet of usable living space. By raising the roof plane, it creates flat ceilings with standard 8-foot heights, turning tight attic storage into functional master suites, guest bedrooms, and full bathrooms.
Conclusion
Building a shed dormer is one of the most effective ways to maximize vertical real estate without sacrificing yard space or expanding your foundation footprint. From calculating rafter loads on the subfloor to installing flawless step flashing along the cheek walls, precision carpentry is essential at every stage.
